THE NEW LIQUISCAN VF


Efficient metal separation for filler applications

The LIQUISCAN VF was specially developed for use in pump lines with high hygienic requirements. It reliably detects and separates magnetic and non-magnetic metal contaminants from liquid or pasty products and offers very good detection sensitivities even for products with high product effects.

Thanks to its short installation length and optional quick-release fasteners, the metal separator can be easily attached to vacuum fillers and pumps. Various separating units ensure maximum flexibility and easy integration into complex line control systems.


Request free consultation now



Find the right machine for your requirements

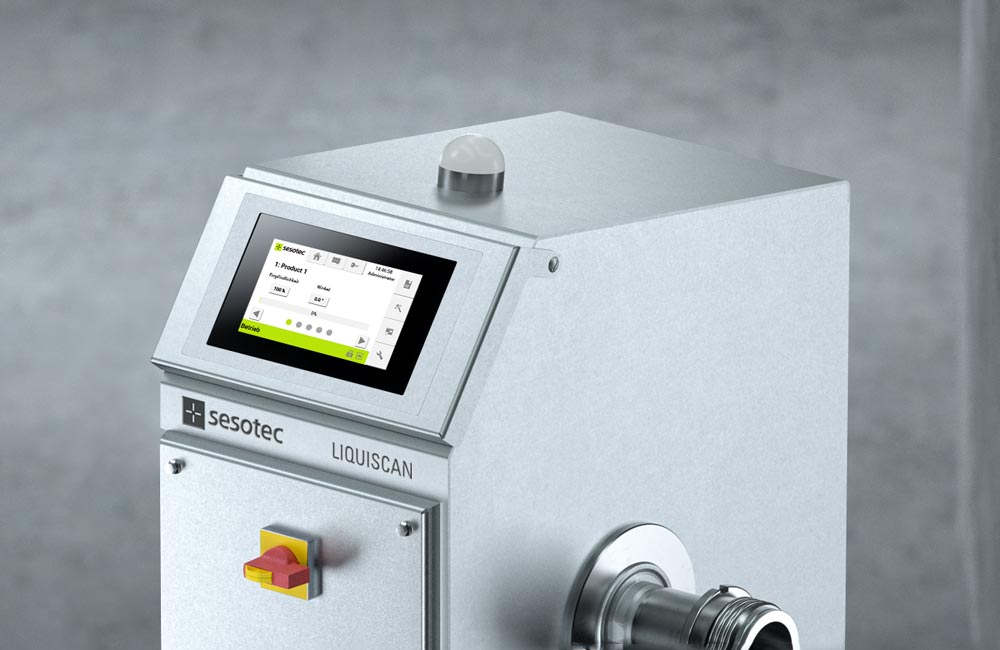

The LIQUISCAN VF GO is the standard model and provides a very good detection accuracy. It has single- or dual-frequency technology and detects metallic foreign bodies from a size of 2.0mm stainless steel in the product. LIQUISCAN VF GO is equipped with the new GENIUS ONE control unit.:

GENIUS ONE Control Unit

  • New user interface with touch display for easiest operation
  • Faster teach-in, fewer operating errors, and short operating times
  • Cost and time savings through effective operating and service functions
  • IoT-ready: USB port and integrated Ethernet interface for easy data transfer



The LIQUISCAN VF IC is the premium model for best detection accuracy at high product effects. It has multisimultaneous frequency technology and detects metallic foreign bodies from a size of 1.5 mm stainless steel in the product. LIQUISCAN VF IC is equipped with the new INTUITY Control unit:

INTUITY

  • Sensitivity prediction:  The sensitivity prediction enables automatic determination of the detection sensitivity of various foreign bodies.
  • Compliance Mode:  In the compliance mode you can set the sensitivity to factory or audit standards to generate a complaint.
  • Checkpoints:  Checkpoints are used to restore product parameters. In the course of quality assurance, they allow a comparison between the current and previously saved product settings. This makes it possible to reconstruct individual products.
  • Auto Tracking:  Dynamic Auto Tracking enables intelligent tracking of product compensation parameters when product properties change, e.g. if the recipe or temperature changes.
  • Statistical evaluations:  Various statistics provide information on important factors such as the condition of the equipment and key production figures.

  • Optionally available:
    • THiNK: THiNK is a software with artificial intelligence. It can almost mask the product effect completely, thus increasing detection sensitivity and reducing false rejections.
    • ICM: The integrated compliance monitoring ensures safety by continuously monitoring the detection capability of the inspection system and reliably detects deviations.
    • IVP: The Integrated Validation Process (IVP) is a documentation tool and provides proof that the desired quality objectives for the respective product have been achieved.





YOUR PRIORITIES, OUR ANSWERS

THE 6P-Concept


Conformity &
accuracy

Very good detection sensitivities even with strong product effects due to singal, dual or multi-simultaneous frequency technology, automatic product compensation, and digital signal processing


Safety for people & products

Safe discharge, easy traceability, high access protection, and data security deliver products without contamination to the consumer.


Simple operating
concept

The 5ʺ- or 7ʺ-color touch display with intuitive menu navigation allows you to configure our systems easily and quickly for various applications. Operating errors are virtually impossible.


Hygienic design
concept

A robust and hygienic casing allows easy cleaning and ensures safe water drainage through inclined planes.


Efficiency in all
areas

Adapted reject systems and high interference immunity prevent false findings and increase profitability.


Reliable,
fast service

For a smooth operation, we support you with warranty services, on-site and remote service, and targeted training.

Highlights of the LIQUISCAN VF at a glance - our solutions for effective detection of liquid and pasty products

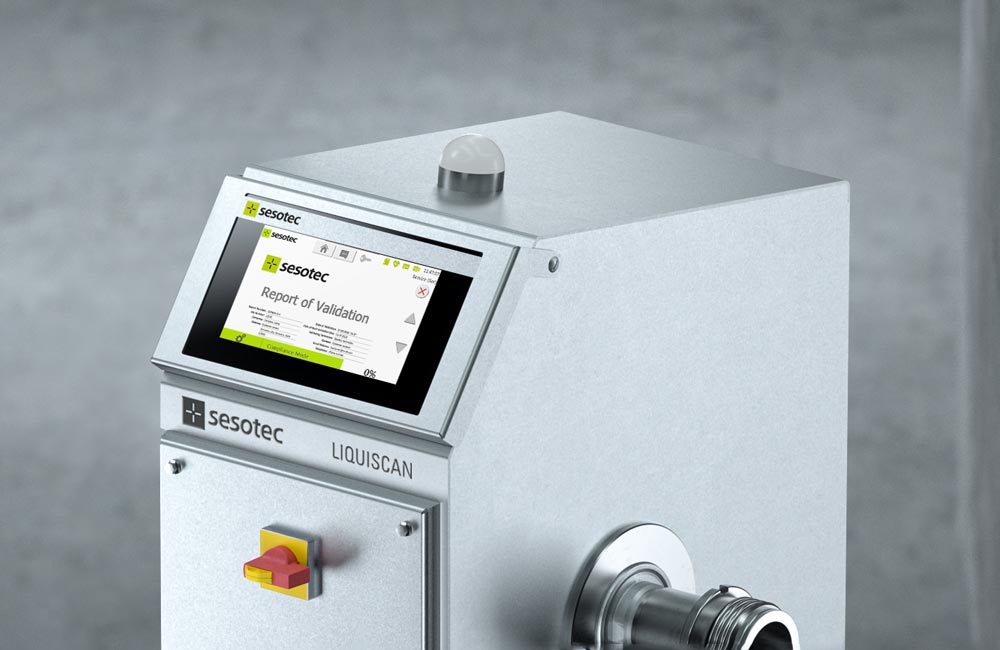

Powerful control units with single, dual or multi-simultaneous frequency technology

Depending on your requirements, two different control units are available for the LIQUISCAN VF: the GENIUS ONE Control Unit with single or dual frequency technology for very good detection accuracy and the INTUITY Control Unit with multi-simultaneous frequency technology for highest detection performance, ideal for products with strong product effects.

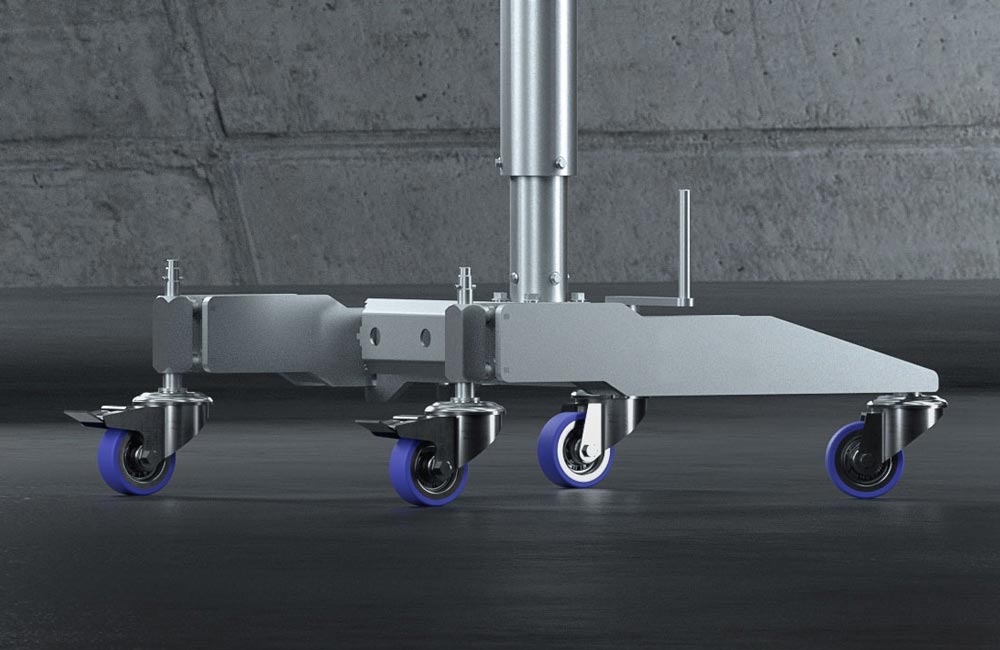

Optimized stand for maximum flexibility and high stability

A stable, height-adjustable stand with rubberized rollers, a stable oscillating axle to compensate for uneven floors or slopes, a lateral rotation option for the detection unit, and a display that can be operated at an optimum height ensure maximum adaptability.

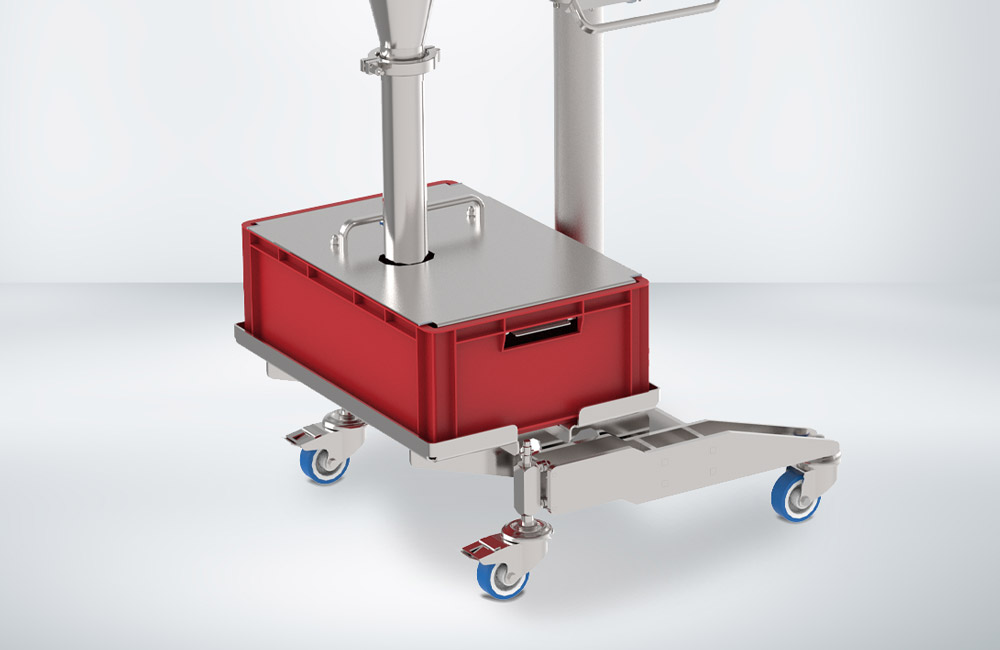

Optionally available holder for E2 box and box with lockable lid

On request, a holder for an E2 box for the discharge material can be integrated into the stand. Optionally also with lockable lid.

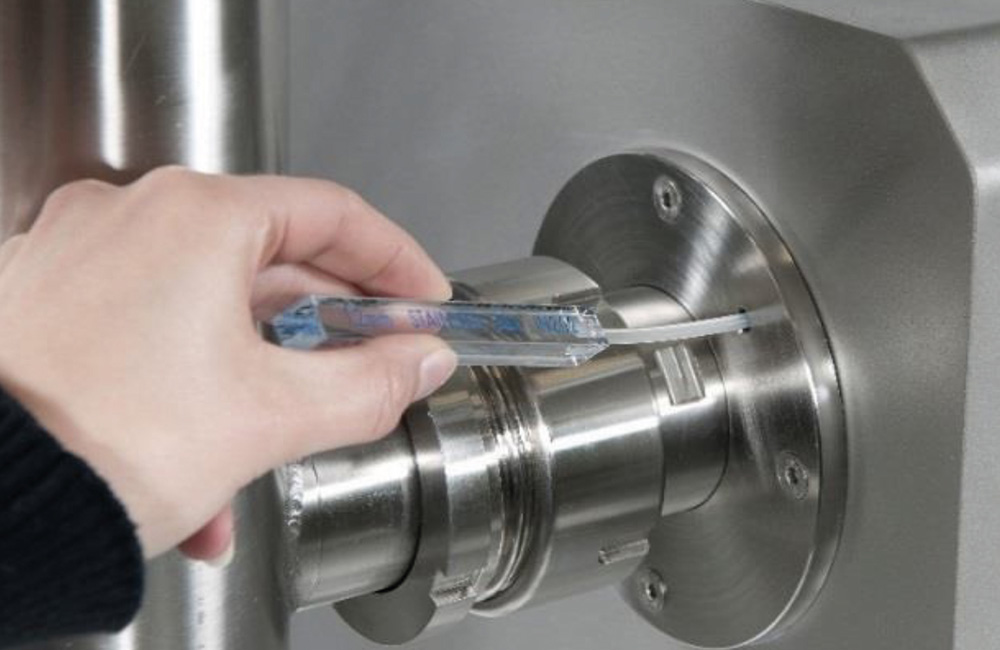

Efficient audit check for simplified functional
testing

For simplified functional testing, there is an opening on the unit for inserting flexsticks with ferrous, stainless steel, and nonferrous test specimens.

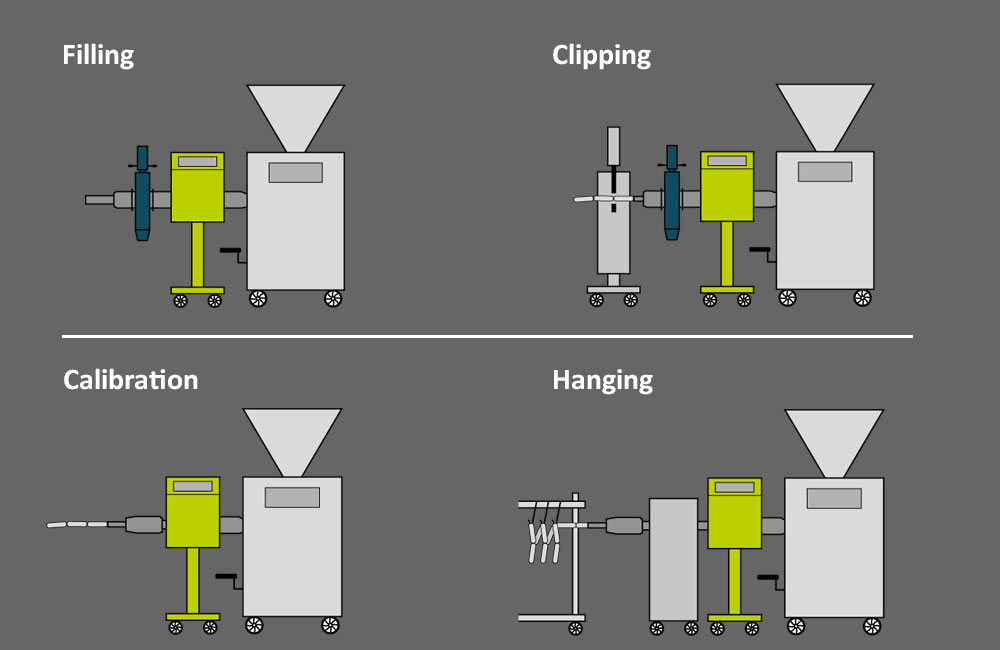

Flexible use in your production line possible due to various applications

Whether filling, clipping, manual calibration or hanging, the LIQUISCAN VF is so flexible that it fits every application. Optionally with or without automatic separating unit.


Interested? Get an even more detailed insight in our brochure!

Download now

Use Liquiscan for a wide range of products and applications


wiener

Sausage products

hackbraten

Minced meat products

schmelzkaese

Dairy products such as cheese

fischaufstrich

Fish products and fish fillings

brotaufstrich

Spreads and pastes

nudelsalat

Delicatessen salads

tomatensuppe

Soups

katzenfutter

Pet food
